Earth's Magnetic Field: Origin, Structure, and Impact on Humanity
Earth’s magnetic field, also known as the geomagnetic field, is a powerful, vital phenomenon that extends from the interior of the Earth into outer space, where it interacts with the solar wind, a stream of charged particles emanating from the Sun.
This magnetic field serves as a protective shield against solar radiation and plays a crucial role in many of Earth’s life-sustaining systems.
Origin of Earth’s Magnetic Field
The Earth’s magnetic field originates primarily from a region called the outer core, which is a layer of molten iron and nickel located approximately 2,890 kilometers beneath the Earth’s surface.
The combination of the fluid nature of the outer core, the Earth’s rotation, and the convection currents driven by heat radiating from the deeper inner core, sets up a system where the moving, electrically conductive fluid generates a magnetic field, a process known as the geodynamo.
The geodynamo theory suggests that these complex fluid motions, driven by the forces acting on the outer core, create electric currents. As a result of the dynamo effect, these electric currents generate and maintain the magnetic field. Therefore, the origin of the Earth’s magnetic field is intimately tied to the physical properties and dynamic processes occurring in the Earth’s outer core.
It’s important to note that the geodynamo theory is based on our current understanding and the available evidence. However, there are still many aspects of the geodynamo and the magnetic field generation that scientists continue to investigate and refine.
Properties of Earth’s Magnetic Field
The Earth’s magnetic field has several key properties that distinguish it:
Dipolar Structure
“Dipolar structure” refers to a magnetic field that has two poles, a north and a south, similar to a bar magnet. This is the simplest type of magnetic field and is characterized by field lines that emerge from one pole and curve around to re-enter at the other pole.
The Earth’s magnetic field is approximately a dipole, with the magnetic field lines emerging from the south pole and re-entering at the north pole. However, the Earth’s magnetic field is not a perfect dipole, as there are small deviations and complexities in the field.
The field lines are somewhat distorted by the solar wind. There are also small, localized variations in the magnetic field due to changes in the Earth’s interior and crust.
In a dipolar magnetic field, the strength of the magnetic field decreases with increasing distance from the source. Also, the direction of the magnetic field at any point is given by the direction of the field lines at that point.
Dipolar fields are found in many contexts in physics and astronomy, not just for planets. For example, many stars have dipolar magnetic fields, as do some galaxies. Magnetic fields are crucial for understanding a wide range of phenomena. These range from the behavior of particles in a plasma, to the large-scale structure of the universe.
Offset from Geographic Poles
The Earth’s magnetic field does not align perfectly with the geographic poles for several reasons tied to the complex dynamics of how the field is generated.
The Geodynamo Process
The Earth’s magnetic field is generated in the planet’s outer core by a process known as the geodynamo. The outer core is a fluid layer composed primarily of iron and nickel, heated by the inner core and the mantle.
This heating creates convection currents that, combined with the rotation of the Earth, generate complex flow patterns in the molten metal. These movements of conductive fluid create electric currents, which in turn produce the magnetic field. The complexity of these fluid motions leads to an imperfect, fluctuating magnetic field.
Field Fluctuations
The magnetic field isn’t static. It undergoes slow changes in strength and direction over time, a phenomenon known as secular variation.
These changes are the result of evolving conditions and flow patterns within the outer core. As such, the alignment of the magnetic poles drifts, causing them to be offset from the geographic poles.
Geomagnetic Poles vs. Magnetic Dip Poles
It’s also important to note that the geomagnetic poles, the north and south ends of the idealized dipole field of the Earth, do not coincide with the magnetic dip poles, which are the locations where the magnetic field lines are perpendicular to the Earth’s surface. The magnetic dip poles are what compasses align with, and they are usually located closer to the geographic poles than the geomagnetic poles.
The offset between the Earth’s magnetic and geographic poles is significant for navigation. Navigational systems, including traditional compass navigation and modern systems like GPS, must take this offset into account to provide accurate direction information. As the magnetic poles continue to shift, these systems need to be updated regularly based on new measurements of the magnetic field.
Changing Intensity and Direction
The Earth’s magnetic field is not static but varies in both intensity and direction over time. These changes are driven by the dynamo process occurring in the Earth’s outer core and various external factors.
Geomagnetic Secular Variation
Geomagnetic Secular Variation (GSV) refers to the long-term changes in the Earth’s magnetic field. This term is typically used to describe changes occurring over time scales of a year to many thousands of years. Secular variation results from complex processes in the Earth’s outer core, which generate the main component of the Earth’s magnetic field.
The Earth’s magnetic field is not static. It changes both in intensity (strength) and direction over time. This was first recognized in the early 19th century, when it was noticed that compass needles slowly drifted over time. Since then, careful measurements have shown that these changes are happening all over the globe.
Causes
The main cause of geomagnetic secular variation is the motion of molten iron within the Earth’s outer core. These fluid motions are driven by heat from the inner core and the mantle and by the rotation of the Earth. They act as a dynamo that generates electric currents, which in turn create the magnetic field.
Characteristics
Geomagnetic secular variation is irregular and complex. It can vary greatly in different regions and at different times. For example, in some places, the magnetic field strength may be increasing, while in others, it may be decreasing. Similarly, the magnetic north pole, the point where the magnetic field lines are vertical, is currently moving at a rate of about 10 kilometers per year.
Impacts
Geomagnetic secular variation affects many areas. It must be taken into account in navigation, since it changes the magnetic declination, the angle between magnetic north and true north, which is important for compass readings. It also affects geophysical surveys, satellite systems, and other technologies that depend on the Earth’s magnetic field. Moreover, it provides valuable information for studying the Earth’s interior and its geological history.
Study
Geomagnetic secular variation is studied through historical records of magnetic compass observations, measurements from magnetic observatories and satellites, and the magnetic signals recorded in rocks and archaeological materials. The study of the secular variation is not only important for practical applications but also for understanding the dynamics of the Earth’s interior, including the processes that generate the magnetic field and contribute to plate tectonics.
Changes in the Outer Core
The Earth’s magnetic field is generated by the motion of molten iron within the outer core. As this fluid metal flows and churns, it generates electric currents, which in turn produce the magnetic field. However, these motions are not constant but change over time due to complex fluid dynamics and heat transfer processes. As a result, the magnetic field they generate also changes.
Geomagnetic Reversals
On a much longer timescale of hundreds of thousands to millions of years, the Earth’s magnetic field can even flip entirely, a phenomenon known as a geomagnetic reversal. During these reversals, the magnetic north and south poles swap places. The last such reversal occurred approximately 780,000 years ago.
Solar Activity
Changes in solar activity can also influence the Earth’s magnetic field. Solar flares and coronal mass ejections can send waves of charged particles towards the Earth, distorting the magnetic field and causing temporary disturbances known as geomagnetic storms.
Other Factors Influence Earth’s Magnetic Field
Other factors can also contribute to changes in the Earth’s magnetic field, including tectonic plate motions, changes in the distribution of mass due to ice melt or sea-level rise, and even human activity.
Scientists study these changes in the Earth’s magnetic field using a variety of methods, including satellite measurements, observatories on the ground, and analysis of ancient rocks. Understanding these changes can help us learn more about the Earth’s interior, predict changes to the magnetic field, and understand the potential impacts of these changes on navigation, communication, and other human activities.
Reversals Over Geological Time
Over geological timescales, the Earth’s magnetic field can completely reverse, a phenomenon known as a geomagnetic reversal. During such a reversal, the magnetic north and south poles swap places. These reversals are irregular and unpredictable, occurring roughly once every several hundred thousand years.
The last reversal, known as the Brunhes-Matuyama reversal, occurred approximately 780,000 years ago. During this reversal, the direction of the magnetic field flipped from pointing towards the geographic South Pole (a state known as “normal” polarity) to pointing towards the geographic North Pole (“reversed” polarity).
Geomagnetic reversals are believed to be a result of complex dynamical processes within the Earth’s outer core. The outer core, composed of liquid iron and nickel, generates the Earth’s magnetic field through a dynamo process driven by convective motions of the fluid combined with the rotation of the Earth. The fluid motions and the generated magnetic field are both subject to chaotic behavior, leading to periods of instability during which the magnetic field weakens, and the poles can reverse.
It’s important to note that these reversals occur over thousands to tens of thousands of years, not suddenly. During the transition, the magnetic field can also become very complex, with multiple magnetic poles appearing at different locations on the Earth’s surface.
Despite the dramatic nature of these events, there is no evidence that geomagnetic reversals have had catastrophic impacts on life on Earth. However, a significantly weakened magnetic field during the transition could potentially allow more solar and cosmic radiation to reach the Earth’s surface, which could have various effects on the atmosphere and life. Scientists continue to study these phenomena to better understand their causes and consequences.
Geomagnetic Field as a Protective Barrier
The Earth’s magnetic field extends thousands of kilometers into space, forming a region known as the magnetosphere.
This field protects the Earth by deflecting most of the charged particles from the solar wind, which could otherwise strip away the ozone layer that protects Earth from harmful ultraviolet (UV) radiation. See below for more information on the magnetosphere
Variation in Field Strength
The magnetic field strength and direction are not the same everywhere on Earth. Generally, the field is stronger near the poles and weaker near the equator. However, there are also regional variations due to the distribution of magnetic minerals in the Earth’s crust. For example, areas with a high concentration of basalt, a magnetic-rich rock, can have a locally stronger magnetic field.
Certain areas, known as magnetic anomalies, show significant deviations from the general trend. These can be due to local geological structures, such as mineral deposits, volcanic activity, or tectonic features. For example, the South Atlantic Anomaly is a region where the Earth’s magnetic field is particularly weak.
At the surface of the Earth, the field strength ranges from approximately 25 to 65 microteslas.
Impact on Solar Particles
The Earth’s magnetic field guides particles from the Sun towards the polar regions. When these particles interact with the atmosphere, they create auroras – natural light displays also known as the Northern and Southern Lights.
These properties and behaviors of the Earth’s magnetic field have significant impacts on our planet’s climate, atmosphere, and even the technology we use.
Structure and Components
The structure of the Earth’s magnetic field is complex, with several components contributing to its overall form.
Dipole Field (Main Field)
A dipole field refers to a magnetic field that has two equal and opposite poles: a north and a south. It’s named after the simplest form of a magnet, a dipole magnet, which has a north and a south pole.
In the case of the Earth’s magnetic field, it is often approximated as a geocentric axial dipole field, meaning that the field can be represented as if there were a bar magnet located at the center of the Earth, aligned along the planet’s rotational axis. In this model, the magnetic field lines emerge from the south pole, curve around the Earth, and re-enter at the north pole, creating a pattern similar to that of the field around a bar magnet.
It’s important to note that this is a simplification. While the Earth’s magnetic field does generally follow this pattern, it also has more complex components. The actual field is a combination of the dipole field and various non-dipolar components, which include quadrupole, octupole, and higher-order components.
The complex dynamo processes in the Earth’s outer core result in these distortions and make the magnetic field uneven in places. This leads to variations in field strength and direction around the world. For example, the magnetic poles (where the field lines are vertical) do not align perfectly with the geographic poles.
The concept of the dipole field is useful in studying and visualizing the Earth’s magnetic field and its effects, such as the deflection of charged particles in the solar wind and the trapping of particles in the Van Allen radiation belts. It also forms the basis for magnetic navigation and the use of compasses, which align with the Earth’s magnetic field and point towards the magnetic poles.
Non-Dipole Field
A non-dipole field refers to any component of a magnetic field that does not fit the simple model of a dipole, or two-pole, magnetic field. The Earth’s magnetic field is composed of a dipole component and several non-dipole components, which contribute to the complexity and variability of the field.
The dipole component is the dominant part of the Earth’s magnetic field. One can think of it as a bar magnet located at the Earth’s center, with its poles aligned along the planet’s rotational axis.
This is a useful approximation for many purposes, but it does not fully describe the actual magnetic field, which is affected by more complex processes in the Earth’s outer core and other factors.
Non-dipole components include quadrupole, octupole, and higher-order components, each representing a different level of complexity in the magnetic field:
Quadrupole
A quadrupole field has four poles: two north poles and two south poles. In the case of the Earth’s magnetic field, this could represent deviations from the main dipole field due to complex flow patterns in the outer core.
Octupole
An octupole field has eight poles: four north poles and four south poles. This could represent further complexities in the magnetic field, associated with more intricate flow patterns in the outer core.
Higher-order components continue this pattern, representing even more complex aspects of the magnetic field. These non-dipole components contribute to the spatial and temporal variations in the Earth’s magnetic field, leading to differences in field strength and direction at different locations and times.
Non-dipole fields are important in scientific studies of the Earth’s magnetic field, helping to provide a more complete understanding of the dynamo processes that generate the field and the variations in the field that affect navigation, communication systems, and other applications.
Crustal Magnetic Field
The crustal magnetic field, also known as the lithospheric magnetic field, refers to the part of the Earth’s magnetic field that is generated by magnetized rocks in the Earth’s crust and uppermost part of the mantle (the lithosphere). This is in contrast to the main component of the Earth’s magnetic field, which is generated by fluid motions in the Earth’s outer core and is known as the core field.
Magnetic minerals in rocks, such as magnetite, can become magnetized when they cool down through a temperature known as the Curie point. This occurs most often in igneous rocks, such as basalt, that form when molten rock (magma) cools and solidifies.
The magnetization of the rock aligns with the Earth’s magnetic field at the time of cooling. This provides a permanent record of the direction and intensity of the field. This is the principle behind paleomagnetism, which studies the magnetic fields of the past recorded in rocks.
Weaker than the core field
The crustal magnetic field is much weaker than the core field. However, it can still cause local anomalies or variations in the total magnetic field that can be detected on the Earth’s surface or by satellites.
For example, the crustal field is particularly strong in regions with a lot of basalt. These include the locations where new crust forms, such as the oceanic ridges.
The study of the crustal magnetic field can provide valuable information about the geological history and structure of the Earth’s crust. For example, the patterns of magnetization in the oceanic crust have provided key evidence for the theory of plate tectonics. The patterns show the spreading of the ocean floor over geological time.
Crustal magnetic field data are also used in exploration for mineral resources, as certain types of deposits can be associated with magnetic anomalies. Moreover, understanding the crustal field is important for accurately modeling the Earth’s total magnetic field. This has applications in navigation, communication systems, and other areas.
Ionospheric and Magnetospheric Currents
Ionospheric and magnetospheric currents are part of the complex interaction between the Earth’s magnetic field and the solar wind – a stream of charged particles emanating from the Sun. They play crucial roles in the dynamics of the Earth’s magnetosphere and ionosphere. This can then lead to phenomena such as geomagnetic storms and auroras.
Ionospheric Currents
These are electric currents that flow in the Earth’s ionosphere. The ionosphere is the part of the atmosphere that is ionized by solar radiation. It typically extends from about 60 kilometers to more than 1,000 kilometers above the Earth’s surface. The ionosphere is a plasma, containing a mix of ions, electrons, and neutral particles, and is thus able to carry electric currents.
The interaction of the solar wind with the Earth’s magnetic field primarily induces ionospheric currents. The main types of ionospheric currents include the equatorial electrojet, a narrow, eastward-flowing current near the magnetic equator; and the auroral electrojets, which flow around the polar regions and are associated with the auroras.
Magnetospheric Currents
These are currents that flow in the Earth’s magnetosphere, the region of space around the Earth dominated by the planet’s magnetic field. There are several types of magnetospheric currents:
Ring Current
This is a current that flows around the Earth in the equatorial plane of the magnetosphere. The trapping of charged particles from the solar wind in the Earth’s magnetic field causes it.
During geomagnetic storms, the enhancement of the ring current can occur greatly. This leads to a decrease in the Earth’s magnetic field at the surface.
Tail Current
This flows in the magnetotail, which is the part of the magnetosphere that is stretched out away from the Sun by the solar wind. The tail current helps to maintain the shape of the magnetotail.
Field-Aligned Currents (or Birkeland Currents)
These are currents that flow along the Earth’s magnetic field lines, connecting the magnetosphere with the ionosphere. They play a key role in transferring energy and momentum from the solar wind to the Earth’s atmosphere.
Understanding these currents is important for space weather forecasting. Changes in the currents can have significant effects on the Earth’s magnetic field, leading to disruptions of radio communications, navigation systems, and power grids. They also contribute to the beautiful displays of the auroras, making them a subject of scientific and public interest.
Geomagnetic Field and the Magnetosphere

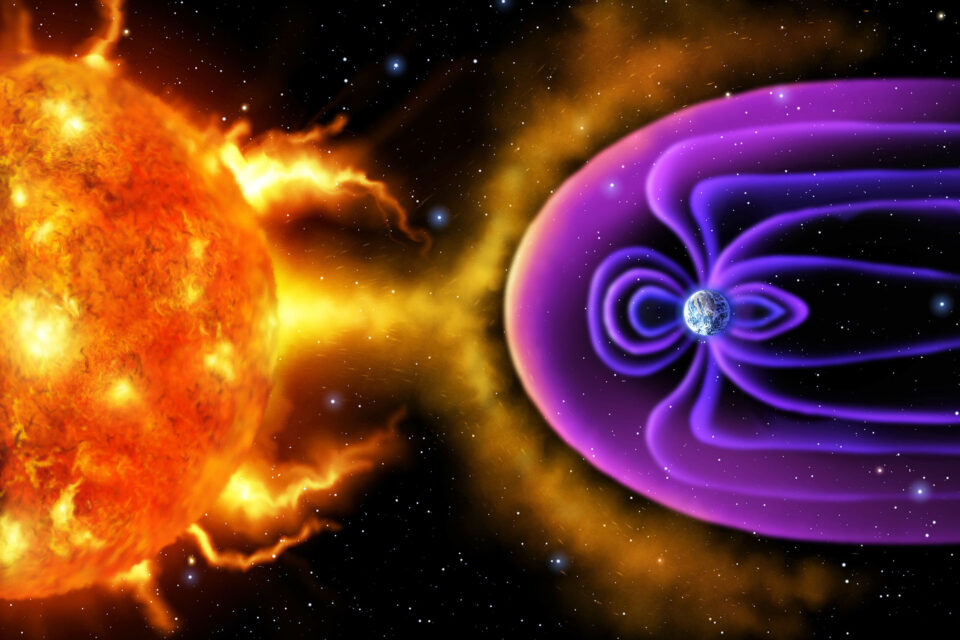

Extending from the Earth into space, the magnetosphere is the area where the geomagnetic field dominates over the solar wind.
The solar wind compresses the magnetosphere on the day-side of Earth and extends it into a long tail (magnetotail) on the night-side. This region is home to a variety of complex magnetic phenomena, including the Van Allen radiation belts, plasmasphere, and others.
The Earth’s magnetic field is a complex system with multiple interacting components. It is dynamic, with its structure continuously changing due to processes both within the Earth and in space.
Importance of Earth’s Magnetic Field
The geomagnetic field serves several vital functions that are crucial for life and technological systems on Earth:
Protection from Solar and Cosmic Radiation
The Earth’s magnetic field plays a crucial role in protecting life on Earth from harmful solar and cosmic radiation. Here’s how it works:
Deflection of Charged Particles
The Earth’s magnetic field plays an essential role in deflecting charged particles, primarily from the solar wind. This process works due to the fundamental principles of electromagnetism.
Here’s how it happens:
Charged Particles in Motion
According to the principles of electromagnetism, moving charged particles generate a magnetic field, and are also affected by magnetic fields.
The solar wind, a constant stream of charged particles (mainly protons and electrons) ejected from the Sun, is thus influenced by the Earth’s magnetic field when it reaches our planet.
Interaction with Earth’s Magnetic Field
The magnetic field exerts a force on the charged particles. The direction of this force is always perpendicular to the direction of the particle’s motion and to the direction of the magnetic field. This results in the particle moving in a spiral path along the magnetic field lines.
Deflection of Particles
As the solar wind meets the Earth’s magnetosphere (the area of space dominated by Earth’s magnetic field), most of the charged particles are deflected and follow the magnetic field lines. They then move around the Earth in a pattern similar to water flowing around a stone in a river.
Earth’s Magnetic Field Entraps Particles
Particles getting trapped along the field lines form the Van Allen radiation belts. These belts resemble two doughnut-shaped zones of energetic particles encircling the Earth. These particles spiral around the field lines and bounce back and forth along them between the magnetic poles.
Funneling to the Poles
The magnetic field lines funnel some of the charged particles, particularly those with lower energies, into the Earth’s polar regions. There, they interact with the atmosphere and cause the auroras, or northern and southern lights.
In essence, the geomagnetic field acts as a protective shield. It deflects the majority of the solar wind away from our planet while trapping some of it in the radiation belts. This phenomenon is crucial for maintaining the Earth’s atmosphere and protecting life on Earth from harmful solar and cosmic radiation.
Trapping of Particles in Radiation Belts
The Earth’s magnetic field plays a critical role in forming and maintaining the Van Allen radiation belts. These belts are two doughnut-shaped zones of energetic charged particles around our planet.
The process is as follows:
Solar Wind Interaction
The Sun constantly emits a stream of charged particles, collectively known as the solar wind. These particles race across the solar system and interact with the Earth’s magnetic field.
Geomagnetic Field Captures Particles
The magnetic field captures some of the charged particles from the solar wind. This happens because charged particles tend to spiral along magnetic field lines. The field lines around the Earth, shaped like a giant dipole or bar magnet, guide these particles towards the Earth’s magnetic poles.
Creation of the Van Allen Belts
The captured particles become trapped along the Earth’s magnetic field lines between the planet’s poles, forming two distinct, doughnut-shaped zones known as the Van Allen radiation belts. The inner belt, closer to the Earth, consists mainly of protons. Conversely, electrons dominate the outer belt.
Particle Movement
Within these belts, particles move in complex ways. They spiral around the magnetic field lines, bounce back and forth between the poles along the lines, and drift around the Earth under the influence of the Earth’s magnetic and electric fields.
Energy Gain and Loss
The particles can gain or lose energy through various processes. These fluctuations can cause them to move between the inner and outer belts or escape the belts altogether.
For example, during geomagnetic storms, caused by enhanced solar wind activity, the radiation belts can become highly energized, and their structure can change dramatically.
The magnetic field acts as a cosmic trap. It captures and holds high-energy particles from the Sun and elsewhere in these radiation belts. This protective feature not only shields the Earth from harmful solar and cosmic radiation but also creates a fascinating and dynamic space environment close to our home planet.
Formation of the Magnetosphere
The magnetosphere is the region of space surrounding the Earth where the planet’s magnetic field dominates the electromagnetic forces present. This area acts like a protective bubble, shielding the Earth from much of the harmful solar and cosmic radiation that continually bombards our planet.
The magnetosphere originates from the Earth’s internal magnetic field. It is primarily generated by the churning of molten iron within the Earth’s outer core. This geodynamo effect creates a magnetic field that extends far into space.
The interaction of the Earth’s magnetic field with the solar wind determines the structure of the magnetosphere. The magnetosphere is compressed on the side of the Earth facing the Sun. This forms a region known as the magnetosheath.
Bow shock and magnetotail
The boundary of the magnetosphere on this side is called the bow shock. This area is where the solar wind slows down and diverts around the Earth’s magnetic field. On the side away from the Sun, the solar wind stretches the Earth’s magnetic field into a long tail known as the magnetotail. We call the boundary of the magnetosphere in this region the magnetopause.
The magnetosphere contains two radiation belts known as the Van Allen belts. These are regions where charged particles (mostly electrons and protons) from the solar wind become trapped by the Earth’s magnetic field. The inner belt primarily houses protons, while electrons dominate the outer belt.
The magnetosphere is also the region where the beautiful auroras (Northern and Southern Lights) occur. These are produced when charged particles from the solar wind funnel down the Earth’s magnetic field lines towards the poles and collide with the atoms and molecules in the Earth’s upper atmosphere, causing them to glow.
Understanding the Earth’s magnetosphere is critical for space weather forecasting, protecting satellites, and planning space missions, as changes in the magnetosphere can affect these operations.
Geomagnetic Field Used for Human and Animal Navigation
Navigators have long used the Earth’s magnetic field as a critical tool. This usage is possible because the Earth’s magnetic field lines converge on two points on the Earth’s surface: the magnetic north pole and the magnetic south pole.
Here’s how the Earth’s magnetic field aids in navigation:
Magnetic Compasses to Navigate Earth’s Magnetic Field
The simplest and most traditional use of the Earth’s magnetic field for navigation is the magnetic compass. These simple devices have been used for centuries by mariners and explorers.
A compass contains a small magnet (usually a magnetized needle) that aligns itself with the Earth’s magnetic field. The magnet points along the field lines towards the magnetic north pole. By knowing which way is north, navigators can determine the other cardinal directions (south, east, and west) and can orient themselves and their maps accordingly.
Animal Migration
Many migratory animals, such as birds, sea turtles, and even some types of bacteria, are believed to have a built-in sense of the Earth’s magnetic field. They use this innate ability for navigation during their long-distance migrations. Researchers are still trying to fully understand this sense, known as magnetoreception, and it remains a topic of ongoing research.
Modern Navigation Systems
Today’s advanced navigation systems, including those based on GPS (Global Positioning System), often include magnetometers to measure the Earth’s magnetic field. These systems correct for the difference between true north (geographic north) and magnetic north to provide more accurate bearings.
Aviation and Maritime Navigation
In aviation and maritime settings, charts and instruments often provide information in both true (geographic) and magnetic bearings. This allows pilots and mariners to navigate accurately using magnetic compasses while also accounting for local variations in the Earth’s magnetic field, known as magnetic declination.
Underwater Navigation
Submarines and underwater drones often use magnetometers for navigation, as GPS signals do not penetrate well through water. The magnetometers can detect variations in the Earth’s magnetic field to help determine the craft’s direction and position.
The magnetic field is a fundamental aspect of navigation, enabling accurate orientation and direction finding across a variety of applications. Whether through a simple compass or complex modern navigation systems, the Earth’s magnetic field guides us on our journeys.
Earth’s Magnetic Field Generates Auroras
Auroras, often referred to as polar lights or aurora borealis in the northern hemisphere and aurora australis in the southern hemisphere, are brilliant displays of light in the Earth’s polar regions.
Interactions between the Earth’s magnetic field and the solar wind create them. This stream of charged particles is a continuous emission from the Sun.
Here’s how the process works:
Arrival of Solar Wind
The Sun continuously emits a stream of charged particles known as the solar wind. This wind travels through space and reaches the Earth, where it interacts with the Earth’s magnetic field.
Deflection and Trapping of Particles
The Earth’s magnetic field deflects most of these charged particles. However, some particles become trapped along the field lines, particularly in two doughnut-shaped regions known as the Van Allen radiation belts.
Funneling of Particles
The Earth’s magnetic field lines converge at the poles. This convergence funnels the trapped particles down into the Earth’s upper atmosphere, particularly in the polar regions.
Collisions in the Atmosphere
When these charged particles collide with atoms and molecules in the Earth’s atmosphere, they transfer energy to these atoms and molecules, causing them to become excited.
Light Emission
The excited atoms and molecules then return to their normal state by emitting light. This light is what we see as an aurora. Collisions with different types of gas molecules cause the different colors in an aurora. Oxygen produces green and red light, while nitrogen produces blue and purplish-red light.
Auroras are more likely to occur during periods of high solar activity, such as during a solar flare or a coronal mass ejection, when the solar wind is particularly intense. They are a beautiful and visible demonstration of the interaction between solar activity and the Earth’s magnetic field.
Protecting the Atmosphere
The magnetic field provides a vital line of defense, protecting the Earth’s atmosphere from the solar wind. This “wind” actually represents a stream of charged particles that the Sun continually ejects.
The interaction between the Earth’s magnetic field and the solar wind creates a vast magnetic bubble around the Earth, known as the magnetosphere. This magnetosphere helps shield our planet from a significant portion of the solar wind.
Here’s how this process works:
Deflection of Solar Wind
As the solar wind approaches Earth, the Earth’s magnetosphere deflects the charged particles. This causes the particles to flow around the Earth, much like water flowing around a rock in a stream. Without this deflection, the solar wind would interact directly with the Earth’s atmosphere.
Atmospheric Erosion Prevention
If the solar wind were able to interact directly with the Earth’s atmosphere, it could gradually erode it over time. The high-energy charged particles in the solar wind have the potential to knock atmospheric particles into space, stripping them away from the Earth. Researchers believe this has happened to Mars, which has a very weak magnetic field. As a result, Mars has a much thinner atmosphere than Earth.
Protection from Solar Radiation
The Earth’s magnetic field also traps some of the Sun’s charged particles in radiation belts around the Earth. These areas are known as the Van Allen belts. By confining these particles to the belts, the magnetic field prevents them from reaching lower into the Earth’s atmosphere.
Thus, the geomagnetic field plays a crucial role in maintaining the integrity of our planet’s atmosphere. This protective shield is vital for preserving life as we know it. The planet’s atmosphere not only provides the air we breathe but also helps regulate the Earth’s temperature and protects us from harmful solar radiation.
Scientific Understanding of the Earth
The Earth’s magnetic field provides valuable insights into the planet’s inner structure and dynamics, including the geodynamo process within the Earth’s outer core.
By studying changes in the magnetic field, scientists can also learn about the Earth’s past. One method is through the study of magnetic stripes on the ocean floor. These strips provide evidence of seafloor spreading and plate tectonics.
Earth’s geomagnetic field is crucial for life, technology, and scientific understanding of our planet. It’s a complex and dynamic system that continues to be a significant focus of ongoing research.
Monitoring Earth’s Magnetic Field
Scientists use several techniques and tools to monitor changes in the Earth’s magnetic field. These monitoring systems are essential for understanding the planet’s geology, studying the sun-Earth interactions, and predicting geomagnetic storms that could impact our technologies. Here are a few ways the Earth’s magnetic field is monitored:
Ground-Based Observatories
Around the world, there are numerous magnetic observatories that continuously monitor variations in the geomagnetic field. These observatories house magnetometers, instruments that measure the magnitude and direction of the magnetic field.
The data collected at these observatories is essential for tracking secular variation (slow changes in the Earth’s magnetic field over time) and for monitoring geomagnetic storms.
Studying the Geomagnetic Field with Satellite Missions
Satellites provide a global view of the Earth’s magnetic field from space. For example, the Swarm mission by the European Space Agency (ESA) has been operating since 2013 with three satellites in different polar orbits. These satellites carry high-precision magnetometers that measure the strength, direction, and variations of the Earth’s magnetic field.
Airborne Surveys
In some cases, they mount instruments on aircraft to take magnetic readings. These surveys provide highly detailed local maps of the magnetic field. These maps are often used in geophysical prospecting to locate deposits of minerals.
Marine Surveys
Researchers often take magnetic measurements at sea as part of surveys for geological research or resource exploration. Ships with magnetometers can map magnetic anomalies on the ocean floor, providing valuable information about seafloor spreading and plate tectonics.
By compiling data from all these sources, scientists can construct detailed models of the geomagnetic field and its changes over time. These models are important not only for scientific research but also for practical applications, such as navigation, mineral exploration, and space weather forecasting.
Paleomagnetism
Paleomagnetism studies the record of the Earth’s magnetic field that various types of rock and sediment preserve. This field of geophysics offers valuable insights into the history of the Earth’s magnetic field. Geophysics helps researchers understand a range of geological and geophysical processes.
When certain types of rock form, particularly igneous rock like basalt or sedimentary rock like clay, they contain minerals (like magnetite and hematite) that are sensitive to magnetic fields. As these rocks cool or settle, these magnetic minerals align themselves with the Earth’s magnetic field.
Once the rock solidifies or the sediment hardens, this alignment “locks in”. This provides a record of the direction and intensity of the Earth’s magnetic field at that location and time.
Paleomagnetism has been crucial in several significant scientific discoveries:
Plate Tectonics
Plate tectonics is the scientific theory that explains the large-scale movements and features of the Earth’s lithosphere. The lithosphere is the outermost shell of the Earth which includes the crust and the upper part of the mantle. This theory has revolutionized our understanding of the Earth’s dynamics and the processes that shape its surface.
The Earth’s Plates
The theory of plate tectonics asserts that several large slabs and a few smaller slabs of rock, known as tectonic plates, make up the Earth’s lithosphere. These plates are rigid, but they float on the underlying, partially molten layer of the mantle known as the asthenosphere. The plates are constantly moving, albeit very slowly, with rates typically ranging from 1 to 10 cm per year.
Types of Plate Boundaries
There are three types of boundaries between tectonic plates: divergent, convergent, and transform boundaries. At divergent boundaries, plates are moving apart. New lithosphere is formed by upwelling and solidification of magma from the mantle. This occurs, for example, at mid-ocean ridges.
At convergent boundaries, plates are moving towards each other. In a process known as subduction, one plate typically forces beneath the other.
This leads to the destruction of lithosphere and can create deep ocean trenches, mountain ranges, and volcanic arcs. At transform boundaries, plates are sliding past each other horizontally. An example of this is the San Andreas Fault in California.
Driving Forces
The heat energy from the Earth’s interior drives the movements of tectonic plates. Researchers propose two main mechanisms for this movement.
First is the slab pull, where the sinking of a dense tectonic plate at a subduction zone pulls the rest of the plate along. Second is the ridge push, where the upwelling of magma at a mid-ocean ridge pushes the plates apart. Convection currents in the mantle may also contribute to plate movements.
Impacts and Processes
Plate tectonics is responsible for many of the Earth’s major processes and features. These include the creation of the continents and oceans, the formation of mountains and basins, the occurrence of earthquakes and volcanic eruptions, and the evolution of the Earth’s climate and life forms over geological time.
The theory of plate tectonics, developed in the mid-20th century, provides a unifying framework for understanding the Earth’s geology. It draws on multiple lines of evidence, including the fit of the continents, the distribution of fossils, the patterns of earthquake and volcanic activity, and the magnetic patterns recorded in rocks.
Paleogeography
Paleogeography is the study of the Earth’s past geographical features. It aims to reconstruct the arrangement of the Earth’s continents, oceans, and other physical features at various points in geological history. This discipline incorporates knowledge from a number of fields, including geology, paleontology, and plate tectonics.
Paleogeographers use several types of evidence to reconstruct the Earth’s past geography:
Fossil Evidence
The presence of similar fossil species in geographically distant regions suggests that these regions were once close together. This kind of evidence was crucial to the development of the theory of continental drift and plate tectonics.
For example, researchers have found the fern-like fossil plant Glossopteris across all of the southern continents. This fact supports the idea that these continents were once part of a single supercontinent called Gondwana.
Rock and Mountain Correlations
Similarities in rock sequences and mountain ranges across different continents can provide clues about past continental positions.
For example, the similarity of the Appalachians in North America and the Caledonian Mountains in Scotland and Norway supports the idea that these continents were once part of a supercontinent called Pangaea.
Climate Indicators
Certain types of rocks and fossils can indicate past climates, helping to locate past positions of continents and oceans. For example, coal deposits indicate warm, humid conditions, whereas glacial deposits indicate cold conditions.
Using these and other lines of evidence, paleogeographers create maps showing the positions of continents, oceans, mountains, ice caps, and other features at different times in the Earth’s past.
These maps help to understand the Earth’s geological history, the evolution and extinction of life forms, and the past climates and their driving forces. They are also useful in exploring for mineral and hydrocarbon resources, which often occur in deposits formed in specific paleogeographic settings.
Studying the Geomagnetic Field
Scientists study the Earth’s magnetic field using a combination of observational data, laboratory experiments, and theoretical models. Here’s how these approaches work:
Observational Data from Earth’s Magnetic Field
Scientists gather data about the magnetic field using ground-based observatories, satellites, airborne surveys, marine surveys, and even measurements from the International Space Station. These observations allow them to map the field’s strength and direction across the Earth’s surface and monitor how it changes over time.
They can also record magnetic anomalies – places where the magnetic field is stronger or weaker than expected. These anomalies can sometimes indicate the presence of mineral deposits or other geological features.
Laboratory Experiments
Scientists perform experiments in the lab to understand the properties of materials under conditions similar to those in the Earth’s core.
For example, they might study how molten iron conducts electricity or how it behaves under high pressures. These experiments can help scientists understand the geodynamo process that generates the Earth’s magnetic field.
Theoretical Models of the Geomagnetic Field
Scientists use mathematical models to simulate the geomagnetic field. These models can incorporate data from both observations and laboratory experiments.
By adjusting the models to fit the observed data, scientists can infer what’s happening deep within the Earth, where direct observations are impossible.
Solar and Space Physics
The Earth’s magnetic field interacts with the Sun and the solar wind, a stream of charged particles flowing from the Sun. By studying these interactions, scientists can learn more about the structure of the magnetic field and its variations. We know this field of study as magnetospheric physics.
Geomagnetic Storms and Space Weather
Changes in the solar wind cause disturbances in the Earth’s magnetosphere, known as geomagnetic storms. They can affect the Earth’s magnetic field and have impacts on power grids, satellite communications, and navigation systems. Scientists study these storms to understand their causes and effects, and to develop better predictions of space weather.
Each of these approaches contributes to a better understanding of the geomagnetic field. The field is an active area of research, with many ongoing studies aimed at uncovering its secrets.
Conclusion
Earth’s magnetic field, a complex and dynamic phenomenon, plays a fundamental role in shielding our planet and guiding navigation. The ongoing study of this field, from its deep-seated origin to its far-reaching effects in space, remains a pivotal focus of Earth science.
This research not only helps mitigate the risks of geomagnetic storms but also deepens our understanding of our planet and its intricate systems. Despite the significant strides made in understanding the magnetic field, it continues to present scientific challenges that will engage and inspire future generations of geophysicists.
